Corghi A2024LL Leverless Tire Changer - Elec Only

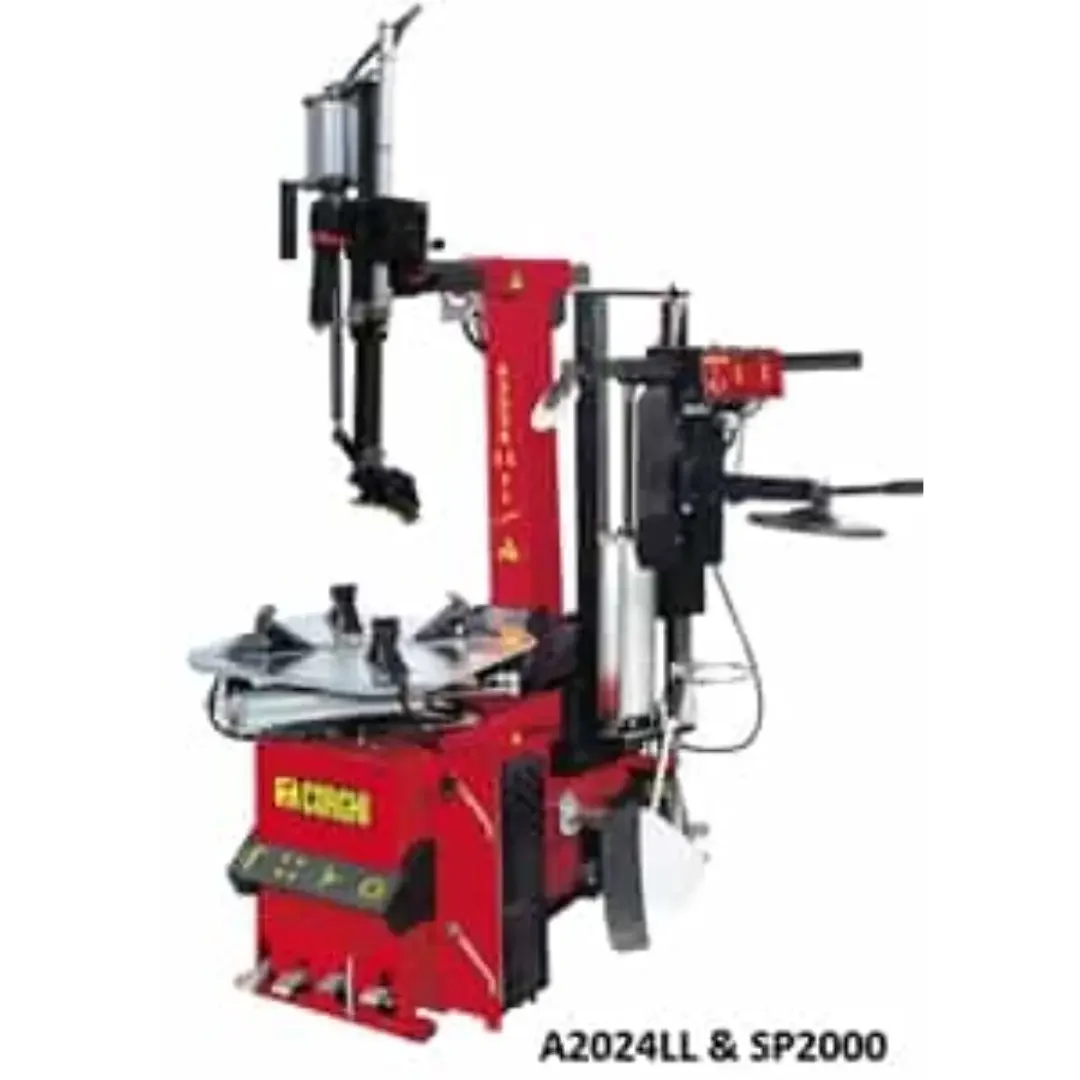

Corghi A2024LL Leverless Tire Changer
A2024LL tilt back leverless tire changer with Corghi’s “Leva la leva” technology, combines tradition and innovation in a reliable high performance product.
Product Features
- Top Bead Demounting Procedure Head Unit
- Adjustable Bead Breaker
- Patented turntable system that allows the clamps to be moved to change the working range.
Product Specifications
Turntable
| Max. Wheel Diameter | 40" (1,016 mm) |
| Max Tire Width | 14" (360 mm) |
| Inside Clamping Capacity | 13-26” (330-660 mm) |
| Outside Clamping Capacity | 10-24” (254-610 mm) |
| Rotation Torque | 885 ft/lbs / 1200 |
| Turntable Torque | 811 ft-lb |
| Turntable Speed | 8.5 rpm |
Bead Breaker
| Type | Fixed Arm with Extending Shoe |
| Max Opening | 3487 lbf / 15500 N |
| Shoe Force | 73" H x 43" W x 70" D |
| Support | Telescopic |
Tool
| Working Range | from 8-26" (203-660 mm) |
| Column | Pneumatic Tilting |
| Head Clamping | Pneumatic |
Other Info
| Electrical | 110 V / 50 hz / 1ph |
| Operating Pressure | 145 PSI (10 bar) |
| Overall Dimensions | 43” W x 67” D x 72” H (1090 x 1700 x 1835 mm) |
| Weight | 571 lbs (259 kg) |
Downloads
Brochure
Manual
Warranty
$3,423.00
Original: $9,780.00
