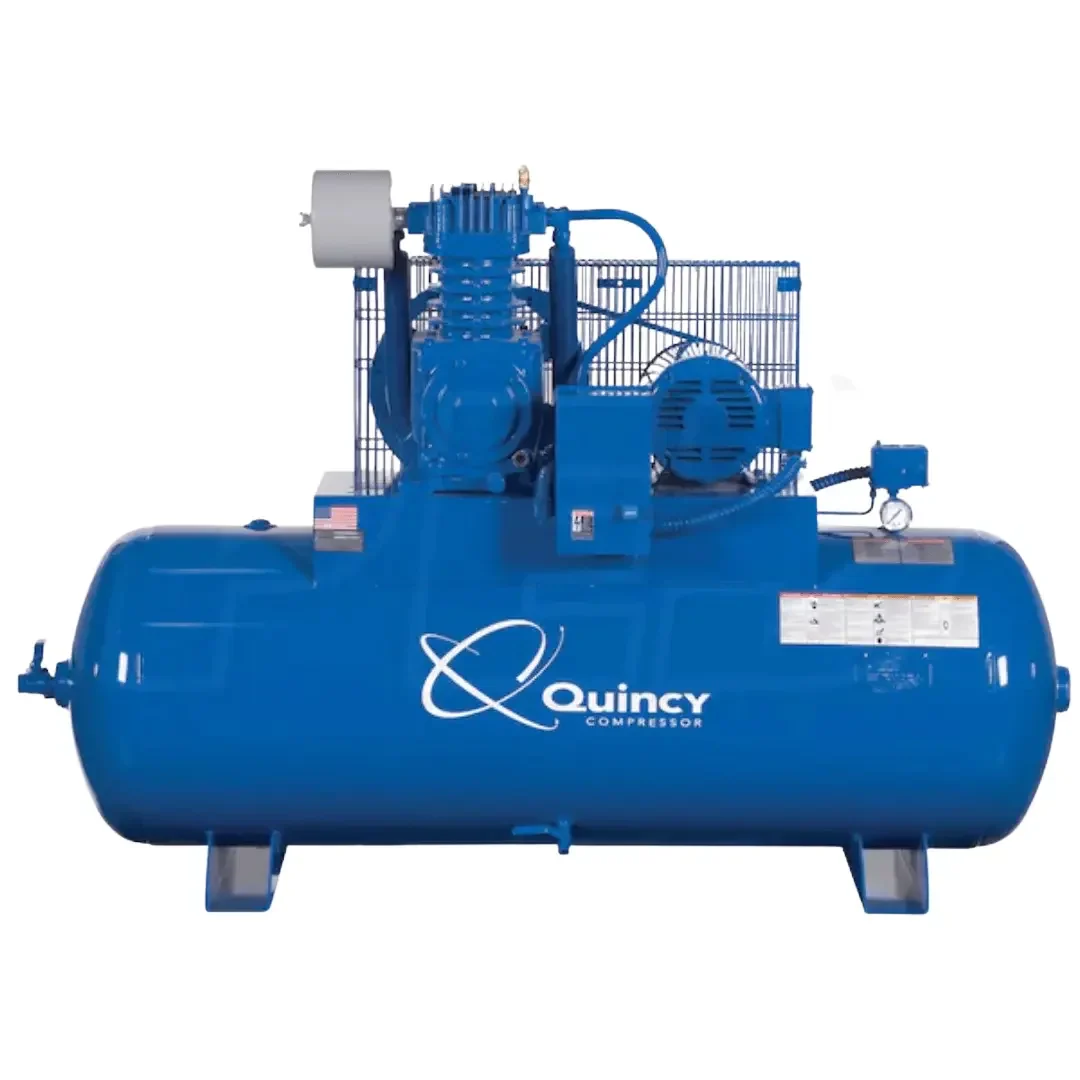

Quincy Air Compressor 453DS80HCB20 QT Pro 5 HP 80 Gallon Two Stage 208V 3 Phase
Quincy 453DS80HCB20 QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
The Quincy QT Pro 5 HP air compressor (model 253DS80HCB20) is designed for commercial and industrial use, featuring a splash-lubricated, two-stage cast-iron pump engineered for durability and long service life. It delivers approximately 17.2 CFM at 175 PSI, providing steady and reliable airflow for a wide range of pneumatic tools and applications.
Powered by a 5-horsepower, 208V Three Phase motor running at low RPM, this compressor minimizes heat and wear for quieter operation and extended component life. The 80-gallon ASME-certified horizontal tank offers ample capacity to meet the air demands of high-output work environments.
Efficiency is enhanced with an aluminum head for heat dissipation, finned-tube intercoolers, and an oversized oil reservoir. The unit maintains low oil carryover to ensure clean compressed air. Maintenance is simplified by an automatic condensate drain, low-oil shutdown protection, and a factory-mounted magnetic starter with thermal overload protection.
Product Features
- Heavy Duty QT-5 Industrial Pump
- ODP Slow-Speed Motor
- High-Efficiency Finned Intercooler
- 2-Piece Connection Rods
- ASME Coded 80 Gallon Tank
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Description
Quincy 453DS80HCB20 QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
The Quincy QT Pro 5 HP air compressor (model 253DS80HCB20) is designed for commercial and industrial use, featuring a splash-lubricated, two-stage cast-iron pump engineered for durability and long service life. It delivers approximately 17.2 CFM at 175 PSI, providing steady and reliable airflow for a wide range of pneumatic tools and applications.
Powered by a 5-horsepower, 208V Three Phase motor running at low RPM, this compressor minimizes heat and wear for quieter operation and extended component life. The 80-gallon ASME-certified horizontal tank offers ample capacity to meet the air demands of high-output work environments.
Efficiency is enhanced with an aluminum head for heat dissipation, finned-tube intercoolers, and an oversized oil reservoir. The unit maintains low oil carryover to ensure clean compressed air. Maintenance is simplified by an automatic condensate drain, low-oil shutdown protection, and a factory-mounted magnetic starter with thermal overload protection.
Product Features
- Heavy Duty QT-5 Industrial Pump
- ODP Slow-Speed Motor
- High-Efficiency Finned Intercooler
- 2-Piece Connection Rods
- ASME Coded 80 Gallon Tank
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
