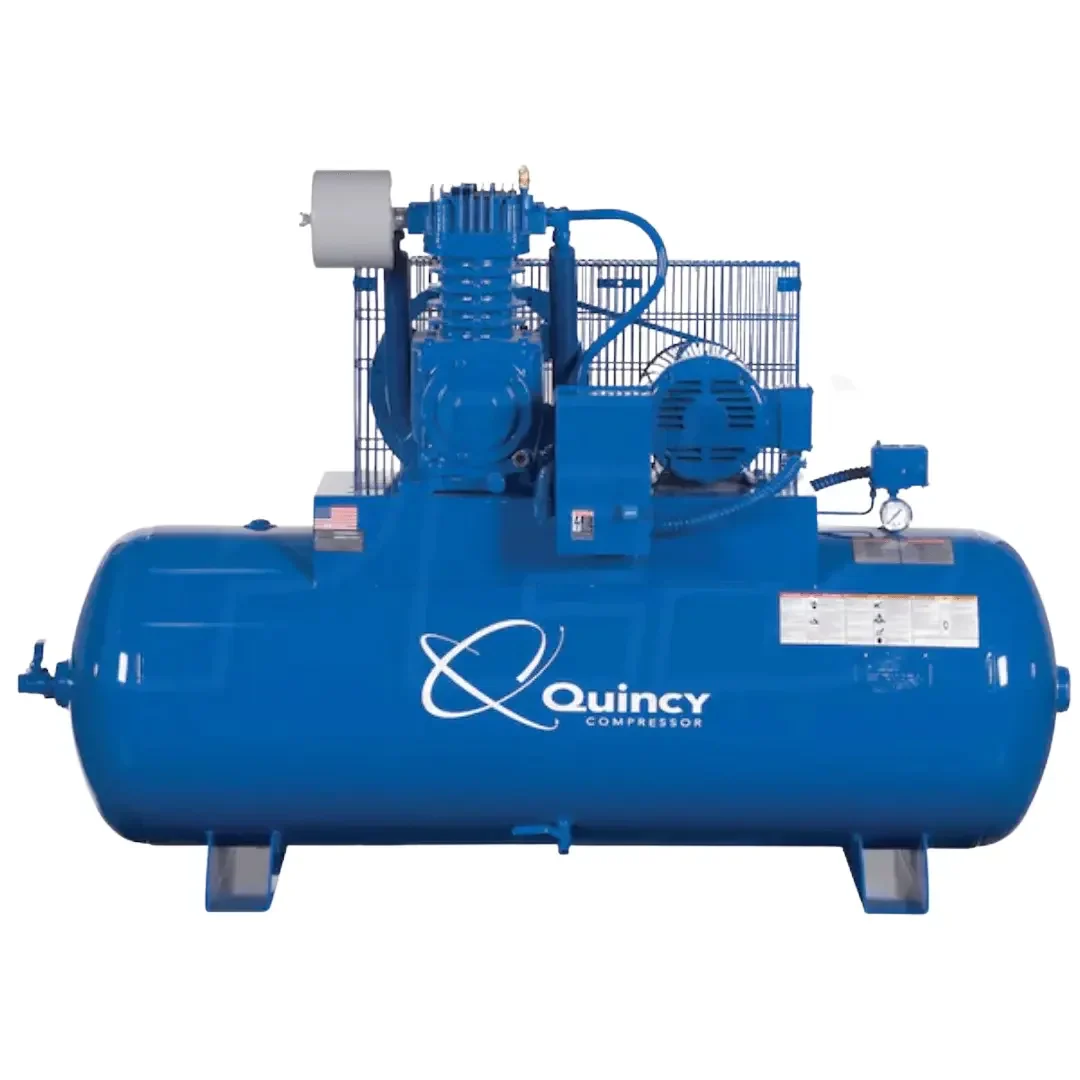

Quincy Air Compressor 453DS80HCB23 QT Pro 5 HP 80 Gallon Two Stage 230V 3 Phase
Quincy 453DS80HCB23 QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
The Quincy 253DS80HCB23 QT Pro 5-HP air compressor is engineered for demanding commercial and industrial applications. It features a splash-lubricated, cast-iron two-stage pump designed for durability and long service life. The compressor delivers approximately 17.2 CFM at 175 PSI, providing reliable and continuous airflow suitable for various pneumatic tools and equipment.
Powered by a 5-horsepower, 230V Three Phase motor operating at a low RPM (~1,750), the unit minimizes heat generation and wear, contributing to quieter operation and extended component life. The 80-gallon ASME-certified horizontal tank offers ample capacity to meet the air demands of high-output environments.
Designed for efficiency and longevity, the compressor includes features such as an aluminum head for effective heat dissipation, finned-tube intercoolers, oversized oil reservoir, and low oil carryover (under 5 PPM). Safety and ease of maintenance are enhanced through an automatic tank drain, low-oil shutdown protection, and a factory-mounted magnetic starter with thermal overload protection.
Product Features
- Heavy Duty QT-5 Industrial Pump
- ODP Slow-Speed Motor
- High-Efficiency Finned Intercooler
- 2-Piece Connection Rods
- ASME Coded 80 Gallon Tank
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Description
Quincy 453DS80HCB23 QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
The Quincy 253DS80HCB23 QT Pro 5-HP air compressor is engineered for demanding commercial and industrial applications. It features a splash-lubricated, cast-iron two-stage pump designed for durability and long service life. The compressor delivers approximately 17.2 CFM at 175 PSI, providing reliable and continuous airflow suitable for various pneumatic tools and equipment.
Powered by a 5-horsepower, 230V Three Phase motor operating at a low RPM (~1,750), the unit minimizes heat generation and wear, contributing to quieter operation and extended component life. The 80-gallon ASME-certified horizontal tank offers ample capacity to meet the air demands of high-output environments.
Designed for efficiency and longevity, the compressor includes features such as an aluminum head for effective heat dissipation, finned-tube intercoolers, oversized oil reservoir, and low oil carryover (under 5 PPM). Safety and ease of maintenance are enhanced through an automatic tank drain, low-oil shutdown protection, and a factory-mounted magnetic starter with thermal overload protection.
Product Features
- Heavy Duty QT-5 Industrial Pump
- ODP Slow-Speed Motor
- High-Efficiency Finned Intercooler
- 2-Piece Connection Rods
- ASME Coded 80 Gallon Tank
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
